Car Camera Lens JZ-9188 Intelligent Panoramic Camera Lens
Application
The application range of AVM (Around View Monitor) panoramic camera
system is very wide. It is mainly used to provide panoramic images
of the surrounding environment of the vehicle to assist drivers in
safe driving in various situations.
1,Panoramic parking assistance: The AVM system obtains real-time images around the vehicle through
multiple cameras. After being synthesized by software into a
360-degree surround view, it is displayed on the vehicle's
multimedia screen to assist drivers in safely and easily parking
their vehicles in complex situations.
2,Blind spot-free driving: The AVM system helps drivers eliminate blind spots and provides
seamless monitoring around the vehicle to improve driving safety.
3,Intelligent driving assistance: With the development of technology, the AVM system, in combination
with ultrasonic radar systems, lidar systems, and vehicle
networking systems, etc., has broad application prospects in the
field of intelligent driving.
Product Details
· Name: Lens
· Brand: GTD
· Material: Gass,Plastic

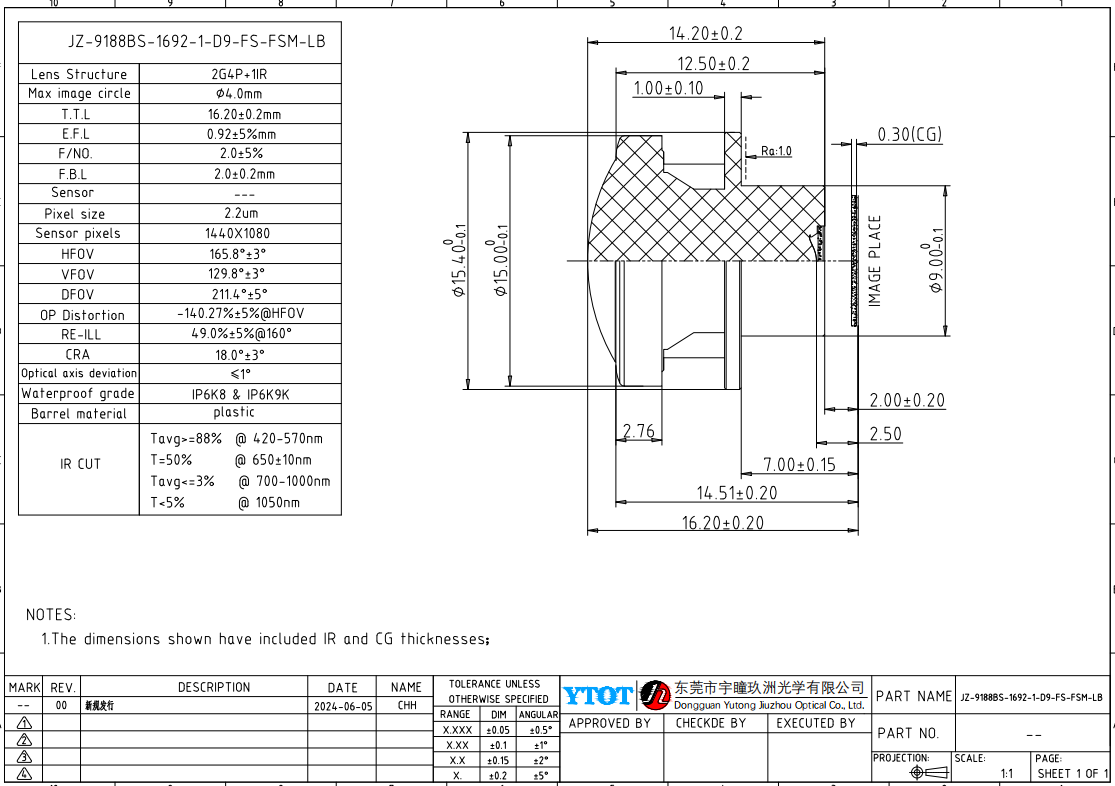

| SPECIFICATION: | JZ-9188 |
| SENSOR SIZE | OX01F10, ISX019 ,OV9706 |
| TOTAL LENGTH(TTL) | 16.2 mm |
| FOCAL LENGTH (EFL) | f 0.895mm |
| F/NO (INFINITE) | F/NO 2.0 |
| RELATIVE ILLUMINATION (RI) | 53% |
| FLANGE BACK LENGTH | FB 2.0 mm |
| FIELD OF VIEW (FOV) | D>210° H=201.8° V=152.6°;D>210° H=194° V=148.2°;D>210°
H=186° V=144° |
| OPTICAL DISTORTION (DIAGONAL) | ＜-140.27%±5%@HFOV |
| THREAD SIZE | AA |
| LENS STRUCTURE | 2G4P +1 IR |
EXAMPLE:
Lens production inspection process
Quality Guarantee
car camera drop-ball standard
salt spray test
waterproof test
against UV light
IP6K9K
IP68
ROHS
film strength's resistance to scratch
Company Profile
Guangtongdian Group Ltd was founded in 2005. So far, its total
investment is RMB 338 million. Its headquarters is based in
Shenzhen, with branches separately located in Dongguan of Guangdong
Province, Xi 'an of Shaanxi Province,Hangzhou of Zhejiang
Province,Xiangyang of Hubei Province and Nanyang of Henan Province.
Currently belongs to Yutong Optical Group.The Group is an
enterprise specialized in design development, production and sale
of various optical lenses and optical components, which achieved a
number of product patents. The products mainly contain wide-range
lens, high-definition megapixel lens, standard fixed-focal lens,
day-night confocal lens and telephoto lens etc. There are products
useful for car camera, such as rear-view parking track, 360-degree
panorama display, car DVR, ASAS and car night-vision device etc.;
smart homeware products, such as security and protection
monitoring, APP Wifi camera, IP camera, smart digital door viewer,
visual door bell, sweeping robot, refrigerator and air conditioner
etc.; digital products, such as sports DV, aerial photo, panorama
camera, recorder for law enforcement, AR/VR etc.; and industrial
products, such as smart iris recognition for machine, scanner,
laser instruments and instruments widely used in optical field. In
addition, it is available to provide technical guidance for
research and application of customized optical lens and components.
Since its establishment, the Group always carries through the
mission of “building spirit, creating wealth, affecting oneself and
benefiting others” and perseveres in development road of high
precision, high standard and high speed. Additionally, it sets up a
perfect system of production management, quality control and
after-sales service via fully implementing quality management
system standards of ISO 9001&ISO/ITAF:16949.
In addition, the annual sales of Yutong optical lenses in the
domestic market since 2015, has ranked first in the market share of
video surveillance lenses for nine consecutive years, and the
market share of optical front-loaded vehicle lenses is still
increasing.
