Automotive Camera Lens:Car Reversing track lensHD Wide Angle

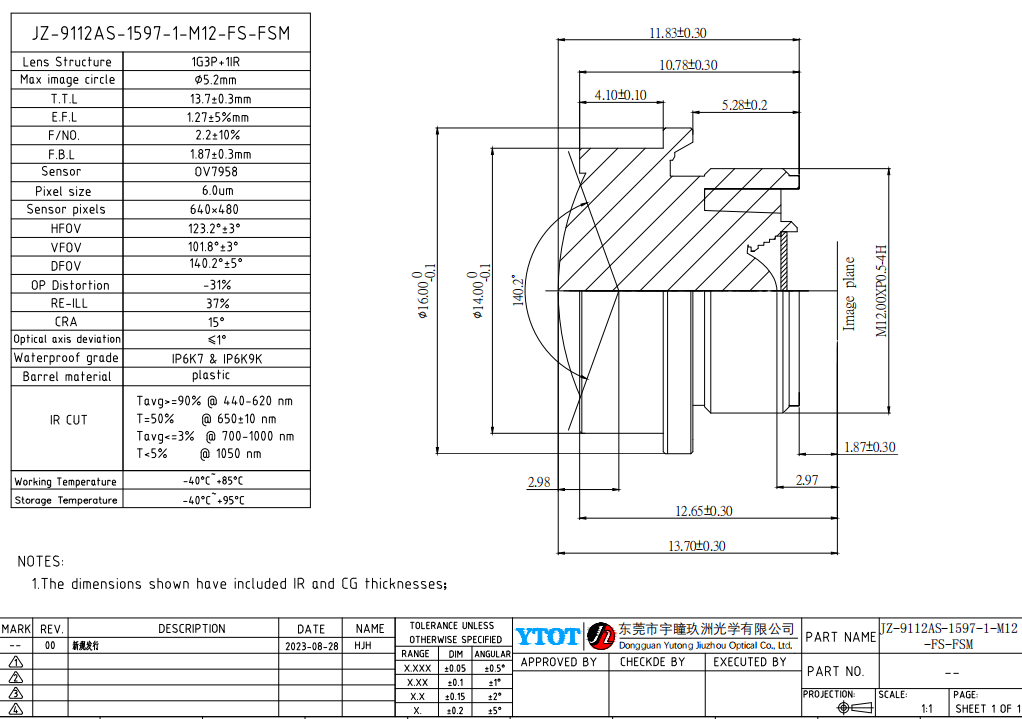

Specifications
| Specification | HK-9112AS-1597 |
| Sensor Size | 1/4" |
| Wavelength | λ 400 - 700nm(COLOR) |
| Focal Length(EFL) | f 1.27 mm |
| F/NO (Infinite) | F/NO 2.2 |
| Back Focal Length | BFL 2.97 mm |
| Flange back length | FB 1.87mm |
| Field Of View (diagonal) | D 140°H 123°V 101° |
| Optical Distortion(diagonal) | ＜ - 31% |
| Thread Size | M12*P0.5 |
| Element | 1G3P + IR |
Product Description
There are products useful for car camera, such as rear-view parking
track, 360-degree panorama display, car DVR, ADAS and car
night-vision device etc.This lens belongs to the RVC series of lenses, and its
characteristics are as follows:
1. Expanded Field of Vision: The RVC system offers a broader field of vision than traditional
rearview mirrors, effectively minimizing blind spots and enhancing
safety. For instance, the CMS system of some commercial vehicles
provides a 180-degree viewing angle, which can cover the blind area
behind the vehicle better compared to the 140-degree viewing angle
of traditional rearview mirrors.
2. Waterproof and Dustproof Design: RVC lenses typically adopt a waterproof design to accommodate
various harsh weather conditions such as rainy days, foggy days, or
nights.
3. Temperature Characteristics: RVC lenses need to possess good temperature characteristics to
guarantee high-definition effects.
4. Optical Distortion Correction: RVC lenses usually have an optical distortion correction function
to present a more realistic real scene.
5. Anti-interference Ability: RVC lenses should have strong anti-light interference ability to
ensure high-quality images can be obtained under different lighting
conditions.
6. Installation Location: RVC lenses are generally installed at the rear of the vehicle to
capture images behind it.
7. Guidelines: Adding guidelines to the reversing image can intuitively assist
drivers in judging the distance between the rear of the vehicle and
obstacles behind, enabling them to take preventive measures in
advance to avoid accidents.
PRODUCTION PROCESS
1 check and clean materials
2 assemble bottom lens/spacer
3 assemble middle lens/spacer
4 waterproof rubber ring
5 assemble top lens
6 lock lid
7 profile check
8 surface check
9 gelling UV glue
10 solidify UV glue
11 waterproof test(airtightness test)
12 vibration test
13 clean surface dust cap
14 stick IR
15 spot check finish product/warehouse if qualified
Why Choose Us
1. Strength Factory: Top10 optical lenses manufacturers in China. More than 18 years
manufacturing experience, multi-production lines to guarantee quick
delivery.
2. Professional Team: We own more than 95 engineers in the research and development
team. By 2024, 177 patents had been granted. Equipped with
automated production line, master all the core manufacturing
industry chain.
3. High Quality: With the advanced metrology instruments and impeccable quality
assurance system, AICO was ISO9001, ISO/TS 16949 and ISO 14001
certified with SGS.
4. Professional & considerate after service: You can inquiry us any questions about the lenses.We can give you
professional solutions.Most of the salespeople have more than 5
years of experience in the optical lens industry, the team is
strong, the division of labor is clear, can respond quickly, save
your time and energy.
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is GTD.At present, the updated
series is JZ, which is the subseries YTJZ of YTOT Optics.
Q: Where is this product made?
A: This product is made in China.
Q:Why do we choose Guangtongdian Technology?
A:We promise:All of our products are in line with industry
standards.all with good quality and competitive price.We assure you
timely delivery by keeping 80% standard products inventory and best
after-sale service.All products were tested 100% before shipment.
Q:What is the applicable range of this product?
A:Car ,360 degree panoramic camera,SLR VR Camera,Medical,Sports
DV,Self-driving car,look around,Infrared vehicle,ADAS,Driving
recorder.
Q:Can your products pass ROHS certificate?
A:Yes,our products meet the industrial
standards,like:TS16949/ISO9001/ROHS.
Q:Accept sample order?What is your minimum order quantity?
A:sample order is accept, but the price is different from the big
ones.
Q:What are the shipping ways you can offer?
A:By air/sea according to customers’ requirements.Usually we use
DHL, FedEX and other express services.
Q:Do your products come with warranty?
A:Yes,One year warranty for non-human damage.
